Warehouse Storage Pallet Racking System
Business scope: production of warehouse shelves, shelves, mezzanine shelves, mobile shelves, mold racks, stacking racks, wire mesh shelves, supermarket shelves, household shelves, iron beds, automated three-dimensional warehouses, narrow alley shelves and other types of shelves.
- Overview
- Parameter
- Inquiry
- Related Products
Product Name |
Heavy duty pallet rack |
Size |
L2300*W1000*H2550mm ( As your request ) |
Layer |
2 ( As your request ) |
Load Capacity |
1000KG (As your request ) |
Upright Specification |
2550*1000*90*70*1.5mm |
Beam Specification |
2300*100*45*1.2mm |
Usage |
Warehouse/Supermarket/Industry storage rack & shelf |
Customized.
Pls. Tell the size and loading per layer.Our accpet customize size and loading capacity.
If you need, The shelf can add extra layer.(Standard is 2 layers)
Model |
Capacity/KG |
Size( L*W*H )mm |
Layer |
Remark |
MB-H01 |
1000KG |
2300*1000*2550 |
2 |
Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.2mm |
MB-H02 |
1500KG |
2300*1000*2550 |
2 |
Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.5mm |
MB-H03 |
2000KG |
2300*1000*2550 |
2 |
Upright:2550*1000*90*70*1.8mm Beam:2300*120*45*1.5mm |
MB-H04 |
3000KG |
2300*1000*2550 |
2 |
Upright:2550*1000*90*70*2.0mm Beam:2300*140*45*1.5mm |
MB-H05 |
4000KG |
2300*1000*2550 |
2 |
Upright:2550*1000*90*70*2.0mm Beam:2300*160*45*1.5mm |
Product Details:
Column specification and bearing capacity
01.Easy installation and reasonable structure.

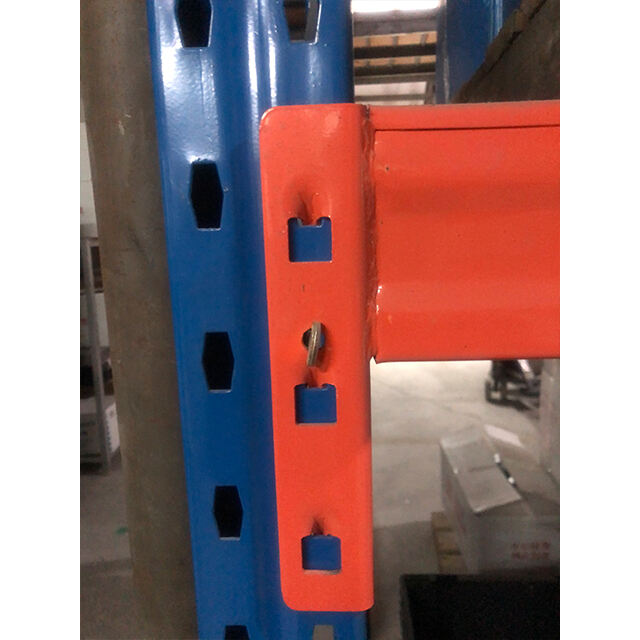

02. High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03. Fix the columns and beams to prevent the beams from falling due to improper operation.
04.Increase the shelf load and adapt to more types of pallets.
Parameters:
1.the common length of heavy-duty shelves is 2.3m to 2.7m (internal dimension), the height is generally more than 3m, the bearing capacity of each layer is at least 1t, and the maximum bearing capacity can reach 5T .
2.different from other shelves, beam type shelves are generally used for storing pallets, so they are generally not equipped with laminates. However, customers can put forward improvement requirements according to their own products. Our factory can arrange matching pallets, laminates or cross beams for customers to meet the different needs of different customers .
3. the rack column is 70*90 U-shaped steel, and the thickness varies from 1.5-2.5mm according to the bearing capacity of each layer .
4. the column is connected with the column by square tube, which is an assembly structure to save transportation space.
