Selective Beam Pallet Racking Q235 Steel Storage Rack for 3PL Warehouse

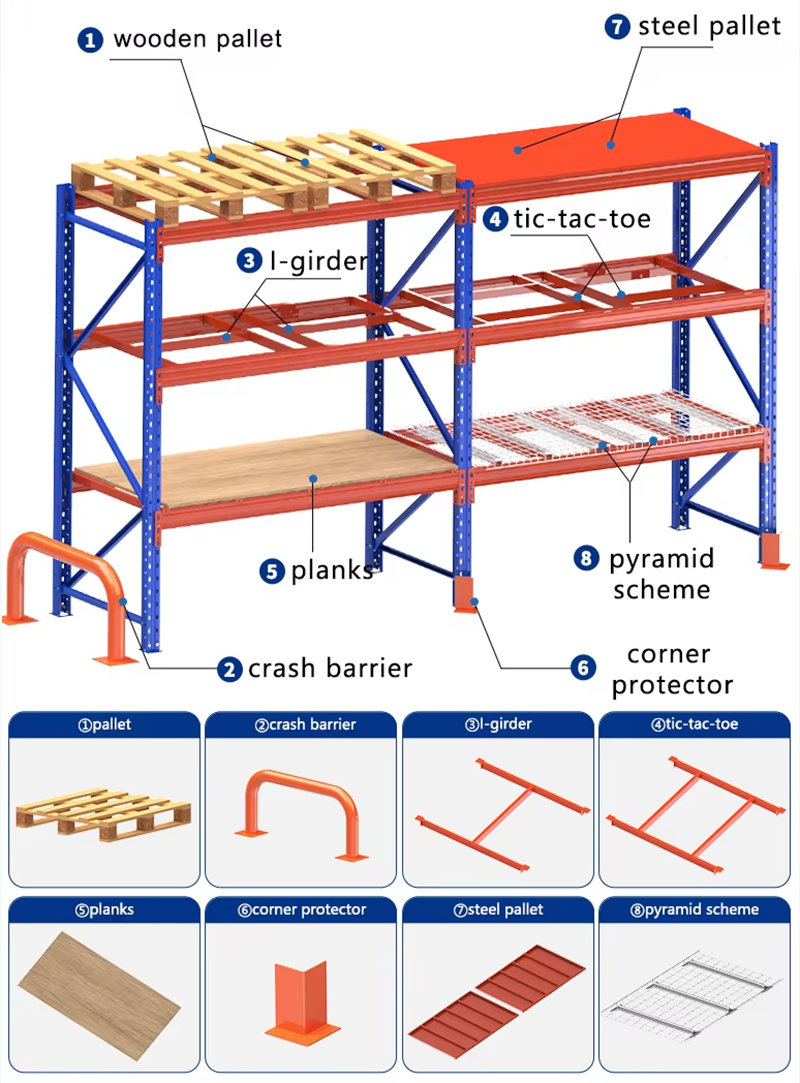

Our beam-type pallet racking (also known as selective pallet racking) is the most common storage system used by global third-party logistics (3PL) service providers and e-commerce warehouses. The entire system consists of teardrop-shaped column frames, box-shaped load-bearing beams, safety pins, column protectors, and back-to-back connectors. We use high-quality Q235B steel and apply high-temperature electrostatic powder coating for surface treatment, effectively preventing rust and scratches during daily storage operations.

Our beam-type pallet racks operate on the First In, First Out (FIFO) principle. Forklifts can directly access each pallet without moving other goods, significantly enhancing picking efficiency and reducing labor costs by 25% to 30%. Additionally, the layer height can be adjusted every 75 millimeters according to your pallet height, carton size, and inventory height. You can gradually expand the storage units without rebuilding the entire system, thereby reducing the initial investment cost.

Core Product Features

1. Reliable structure: Box-shaped welded beams enhance torsional resistance; safety pins firmly lock the beams to prevent them from falling off in case of accidental collisions with forklifts.

2. Space-saving: Fully utilize the vertical warehouse space; the storage capacity increases by 40% to 55% compared to direct stacking of goods.

3. Easy installation: No bolts required, plug-and-play design; workers can complete the installation directly without the need for professional welding equipment. It can also be disassembled and repositioned later if the warehouse is relocated.

4. Strict certification: Passed load-bearing third-party testing, compliant with CE and ISO9001 standards, suitable for long-term high-intensity daily use.

5. Customization options: The standard color is blue for the columns and orange-red for the beams; custom sizes and colors (RAL) are supported.

Technical Specification Table

Application Scenarios

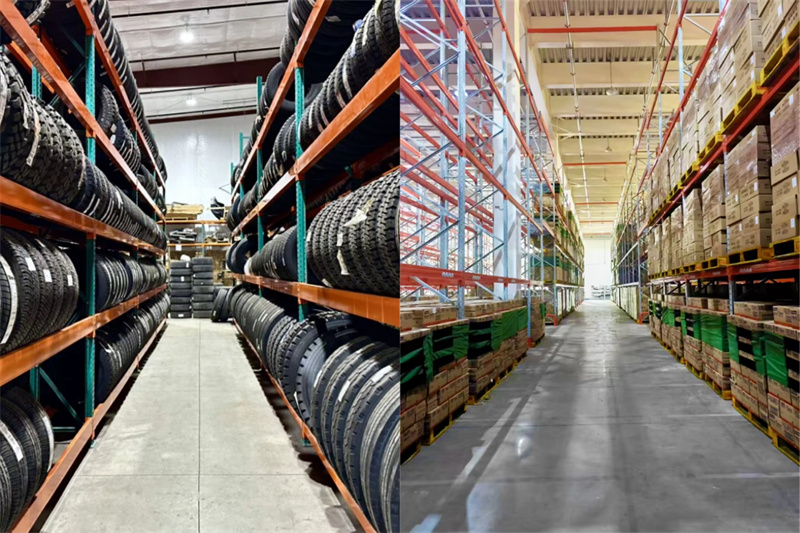

Our beam-type pallet racks are highly suitable for the following industries: third-party logistics warehouses, e-commerce centers, spare parts warehouses, daily goods storage, food and beverage warehouses, and wholesale distribution centers. They can be used in conjunction with manual forklifts, electric stackers, and forklifts, and are suitable for daily cargo handling.

FAQ

Q1: Can the height of the beam be adjusted after installation?

A1: Yes, the diamond-shaped hole design enables you to adjust the layer position every 75 millimeters without disassembling the entire frame.

Q2: What is the warranty period for your beam-type pallet rack?

A2: We offer a 1-year structural quality warranty; for easily damaged parts such as safety pins, a replacement service is provided within 3 months.

Q3: Do you support on-site measurement for my warehouse?

A3: Yes, after you provide us with the warehouse dimensions and pallet dimensions, we can offer you overseas design drawings and warehouse layout planning.
