Product Description

Manufactured from cold-rolled steel with precision CNC punching and a durable powder-coated finish, this cantilever rack maximizes warehouse floor-to-ceiling space utilization while keeping every item visible and accessible. With a per-arm load capacity of 300–500 kg, it is the ideal solution for light manufacturing facilities, hardware stores, retail backrooms, and small-to-medium warehouses.

As a professional cantilever racking manufacturer, we supply complete systems — columns, arms, base frames, and accessories — with engineering drawings, load testing, and installation guidance on every order.

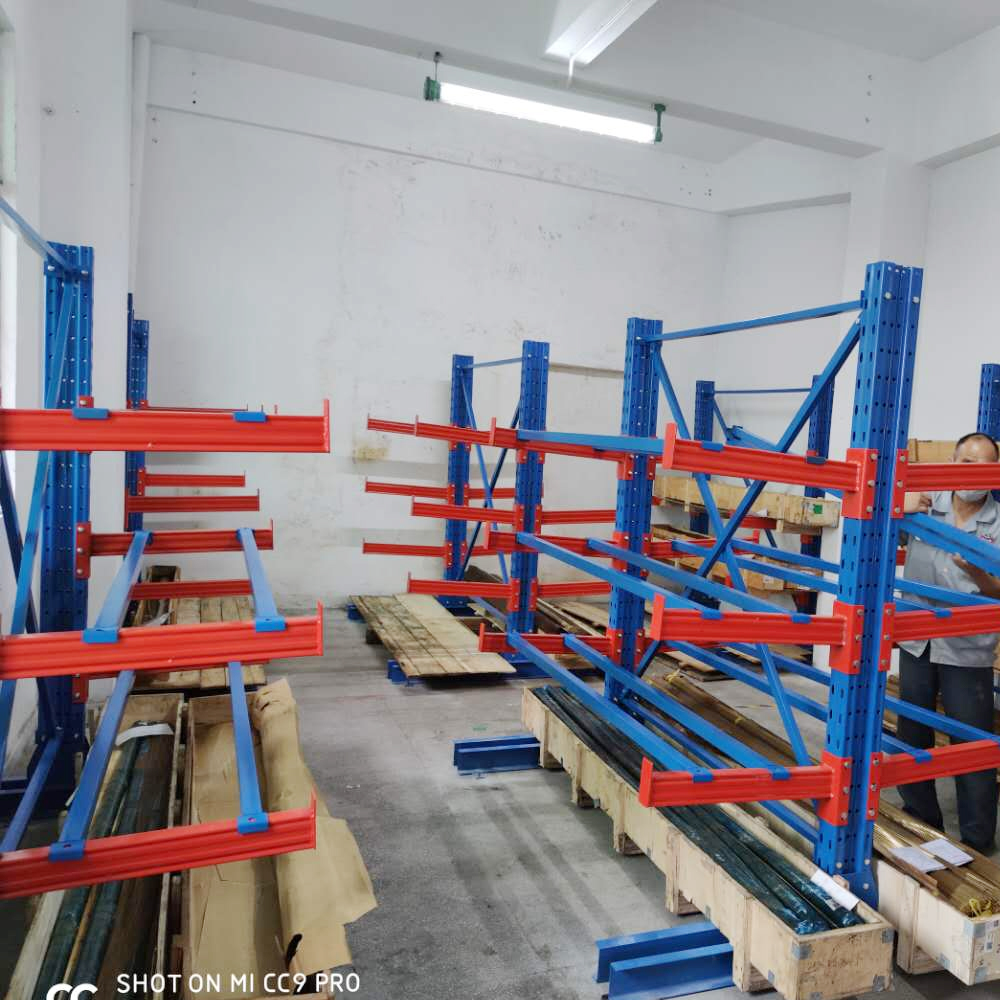

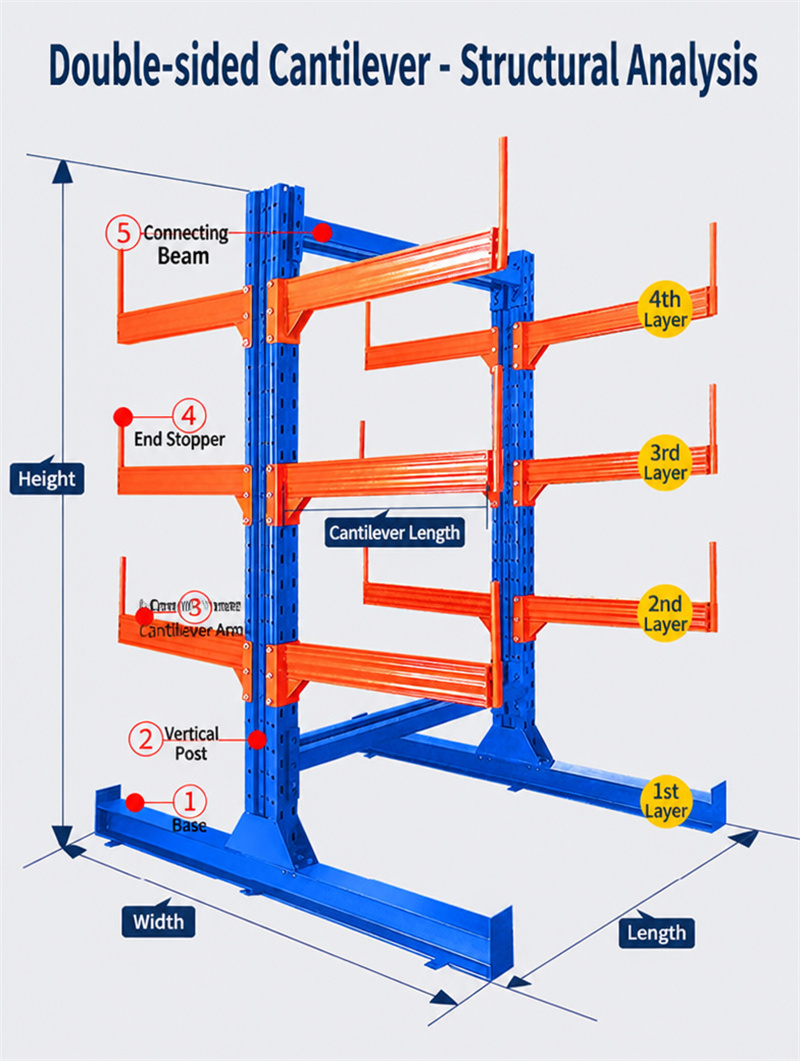

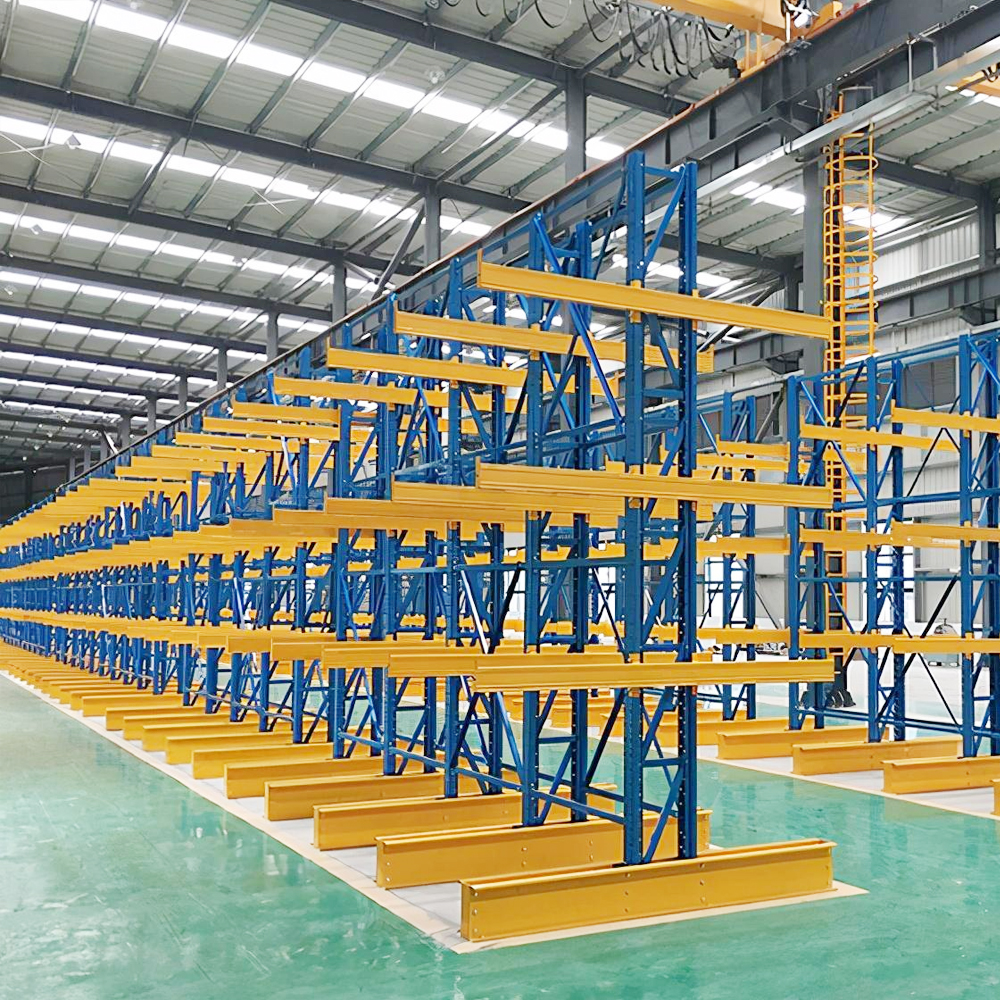

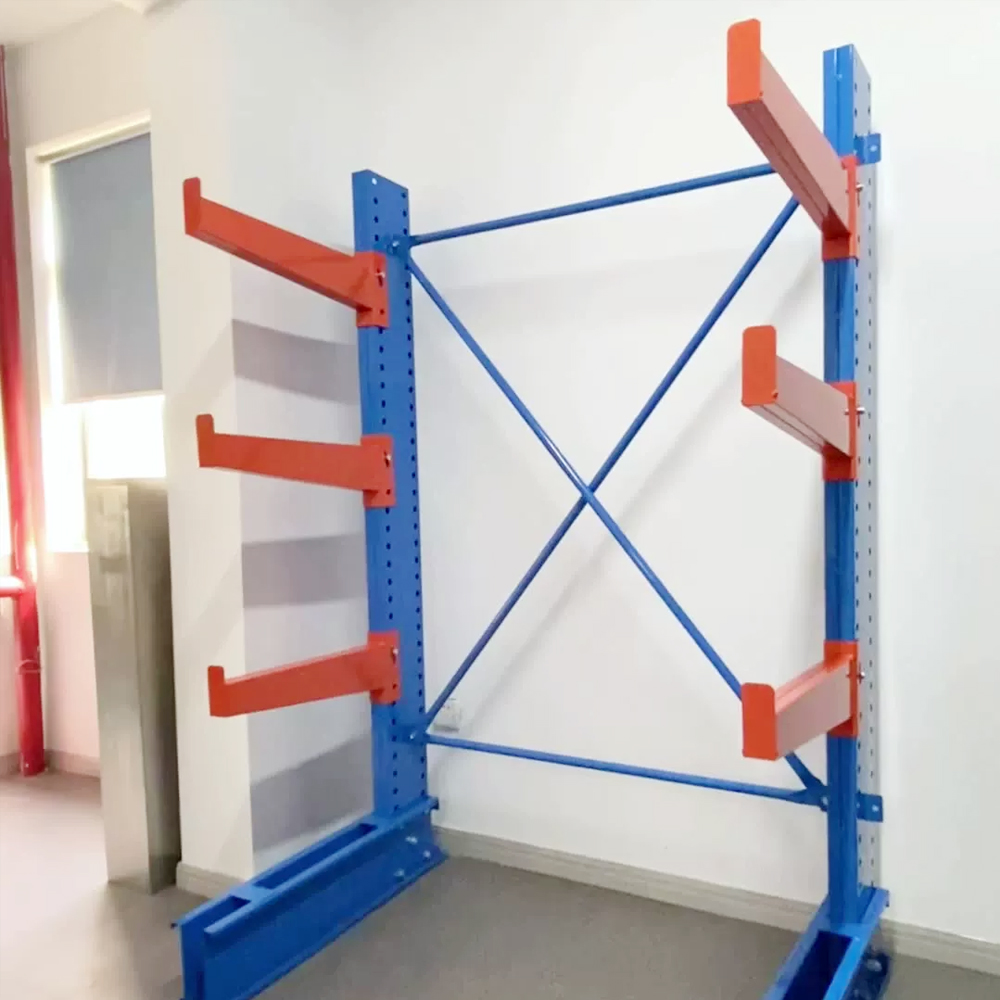

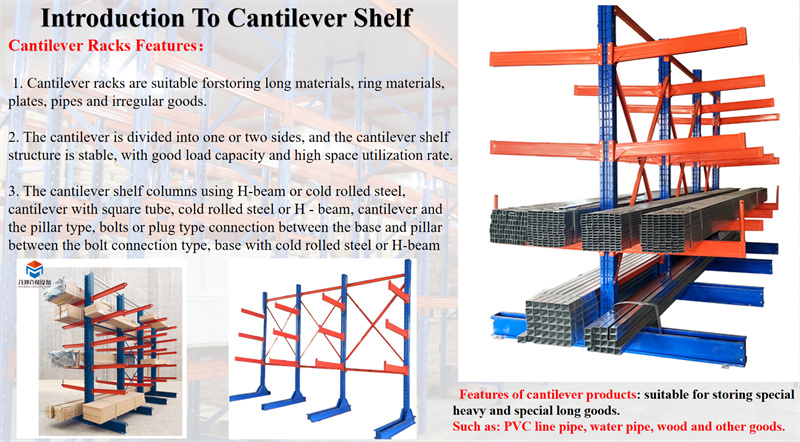

Cantilever racking is the go-to storage solution for long goods that cannot fit on conventional pallet racks. Each system consists of upright columns, horizontal support arms and heavy-duty bases — with no front posts to block access, a forklift can drive straight in and handle the load with maximum speed and safety.

Key Features

Open-front design — no front columns, allowing unrestricted loading and unloading of long items with forklifts or manual handling;

Adjustable arms — arms are bolted at 75–100 mm pitch increments, so storage levels adapt as your inventory changes;

Cold-rolled steel construction — high-strength C-channel columns and formed arms deliver stable, predictable load performance;

Powder-coated finish — RAL color options (standard blue/orange/gray) resist scratches and corrosion in indoor environments;

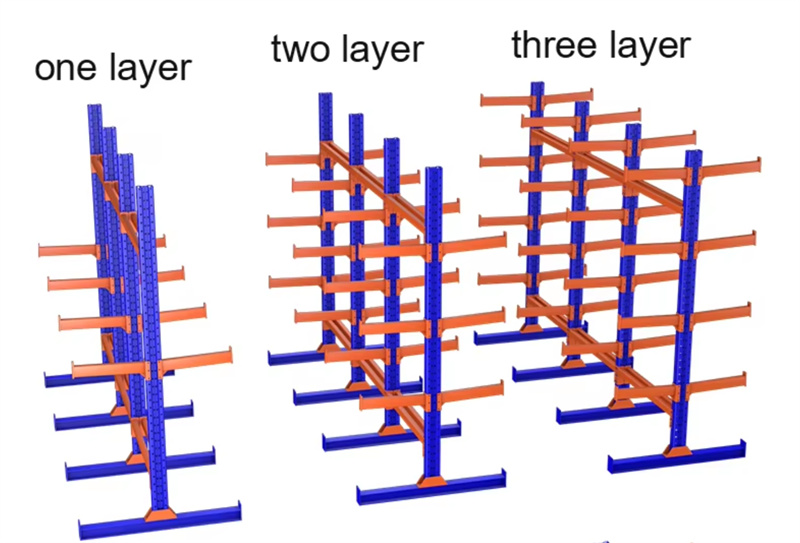

Modular & expandable — start with a single bay and extend horizontally or vertically at any time;

Space optimization — vertical storage of long goods releases floor area, typically increasing storage density by 40–60% vs. floor stacking;

Fast assembly — bolt-together design requires no welding on site; installs in hours with standard tools;

Full accessory range — side rails, end stops, dividers, base plates, and wall-mounted profiles available;

Technical Specifications

Note: All capacities are project-engineered. Send us your load dimensions, weights and racking height for a certified calculation.

Materials & Workmanship

Columns: roll-formed cold-rolled steel C-section, continuous slots for arm mounting

Arms: stepped tapered profile with welded end-stop, bolted connection

Base: welded base frame with floor anchor holes (M10/M12 expansion bolts included)

Process: CNC punching → bending → welding → phosphating → electrostatic powder coating (60–80 µm)

Tolerance control: every bay is jig-welded to ensure column alignment and level adjustment

Applications

Hardware and building material stores — long profiles, PVC pipes, aluminum sections

Light manufacturing — bars, rods, extrusions, strip materials

Retail and e-commerce warehouses — long cartons and irregular packages

DIY / workshop storage — lumber, trim, molding

Electrical and plumbing wholesalers — conduit, cable trays, pipe fittings

Customization & OEM

Dimensions: any height, arm length, and bay width built to your drawings or requirements

Colors: full RAL palette, logo printing on request

Accessories: side rails, end stops, labels, rack warning signs

OEM/ODM: private label packaging, custom instruction manuals, export carton marking

Engineering support: free layout drawing within 24 hours based on your warehouse dimensions

Packaging & Shipping

Packaging: palletized steel frames wrapped in waterproof film + export wooden case option; all bolts and fittings bagged and labeled

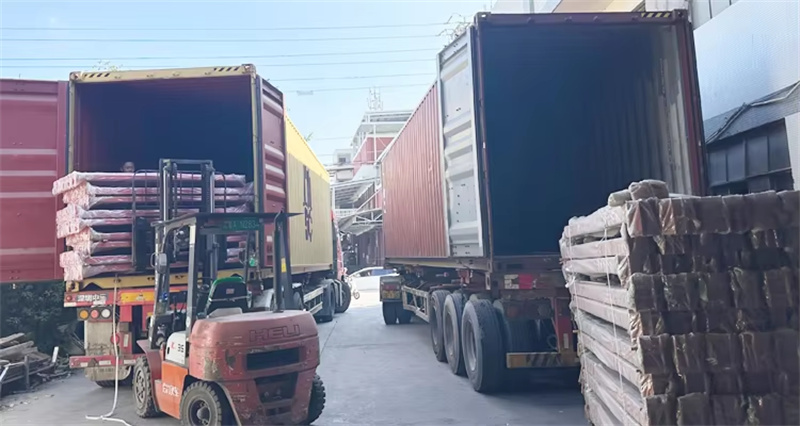

Shipping: 20ft/40ft containers, LCL available; overseas warehouse dispatch for in-stock parts

Lead time: 15–25 days after deposit (standard configurations)

Documents: commercial invoice, packing list, bill of lading, load test report, structural calculation report

Quality & Certifications

ISO 9001:2015 quality management system

Load-tested per GB/T 27924 (national standard for steel storage racks)

1-year structural warranty; 24/7 after-sales support

Third-party inspection (SGS/BV) accepted before shipment

FAQ

Q1: Can the arm height be adjusted after installation?

Yes. The arms are bolted to the column slots; loosening two bolts per arm lets you reposition levels at any time without dismantling the rack.

Q2: Do you provide warehouse layout drawings?

Yes. Send us your floor plan and item dimensions, and our engineers will provide a free layout and load calculation within 24 hours.

Q3: What is the MOQ?

Standard sizes: 10 sets. Customized sizes: 1 set is acceptable for prototype approval.

Q4: Can the rack be used outdoors?

This light-duty series is designed for indoor use. For outdoor or humid environments, please choose our hot-dip galvanized series.

Q5: How do we install it?

Complete assembly instructions and videos are included; a standard configuration for 20 bays can be installed by 2 workers within one day. On-site installation supervision is available upon request.
