Industrial Cantilever Rack Adjustable Steel Arm for Long Material Warehouse

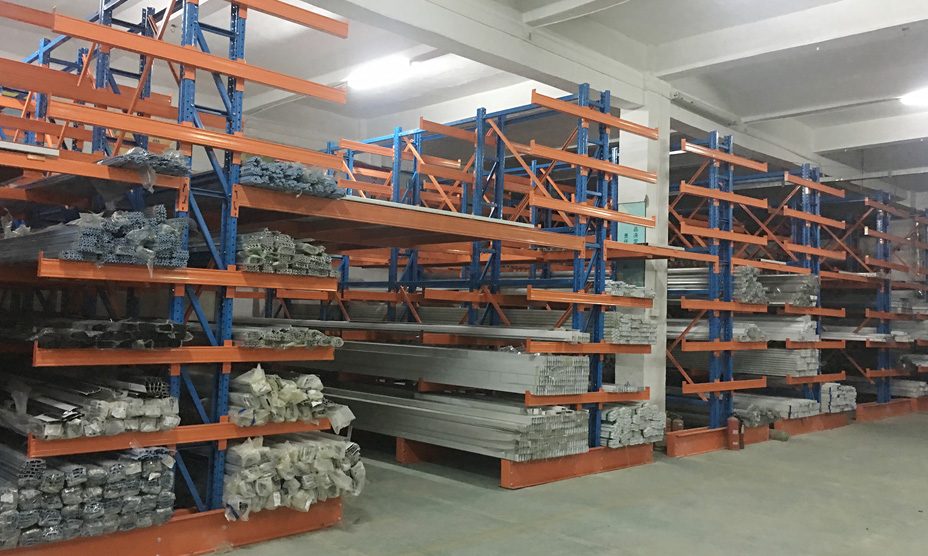

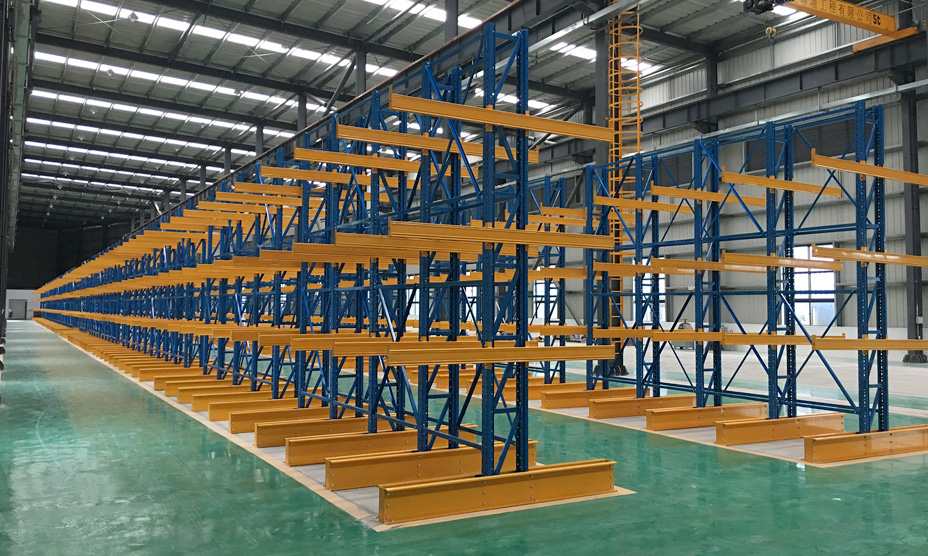

Suitable for storing long-shaped materials. The cantilever warehouse shelves are custom-made shelves, suitable for storing long strips, long rolls and irregular goods such as sheets and pipes. The cantilevers can be single or double, and the goods are stored on the cantilevers fixed to the columns.

Shelf structure features

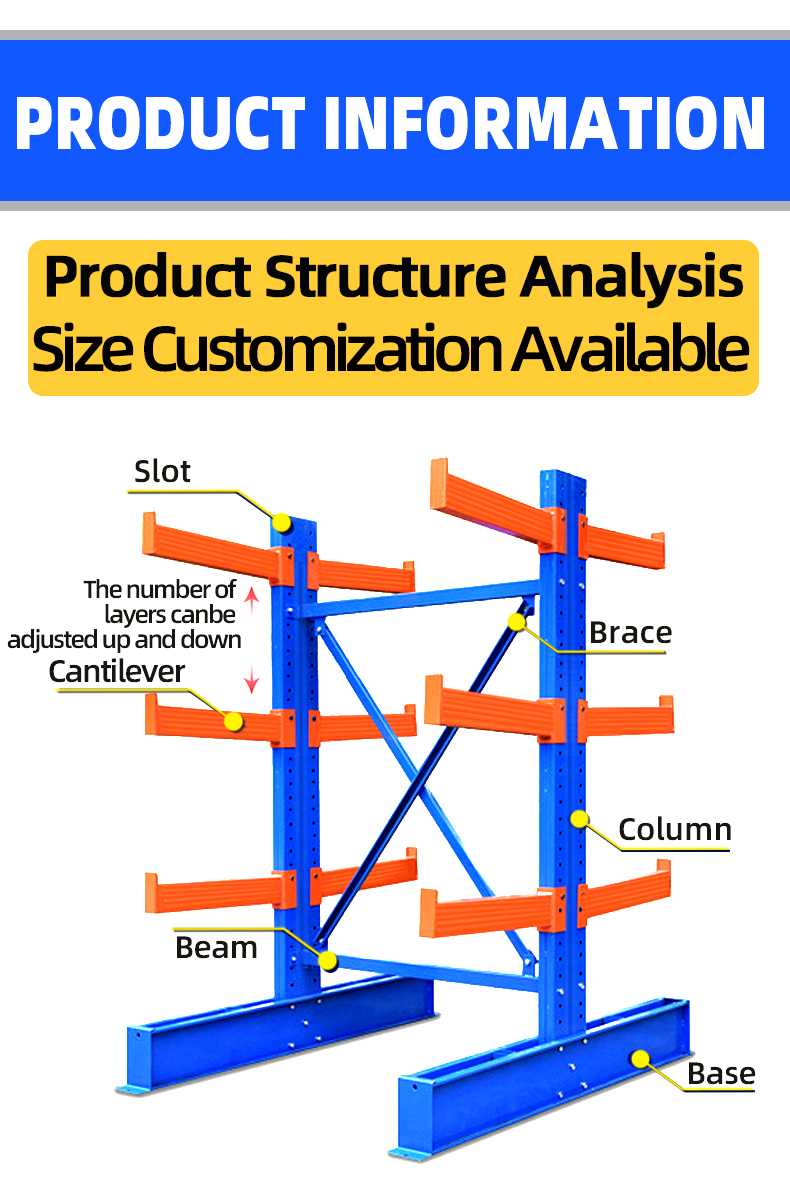

1. Cantilever-type shelves are divided into single-arm and double-arm types. They are highly efficient for storing products such as wood, pipes, and long items. Cantilever-type shelves can be composed of a single column unit combined with a cantilever through horizontal and inclined rods, forming multiple unit systems.

2. Cantilever-type shelves are an effective storage system in terms of quality, safety, and management. The column pieces consist of columns and bases. The columns are formed by welding two specially designed C-shaped steel plates together. This structure makes full use of the load-bearing capacity of the material, featuring a large load-bearing capacity and low cost.

3. The columns are pre-fabricated with double-row holes, with a pitch of 75mm. The cantilevers are connected to the columns through plate pins and can be adjusted up and down at a pitch of 75mm.

How to choose the type of shelves?

Based on the characteristics of goods: long-shaped for cantilever type, small items for stack plate type, full pallets for beam type

According to space requirements: high space utilization for through type, shuttle type, vertical storage, steel platform;

According to automation requirements: manual operation for beam type, stack plate type, automation for shuttle type, vertical storage;

According to cost budget: low cost for stack plate type, beam type, high cost and emphasis on efficiency for automated shelves. By combining the use of various types of shelves (such as "loft style + slat style" and "beam style + flexible style"), the storage efficiency can be further optimized according to actual needs.
