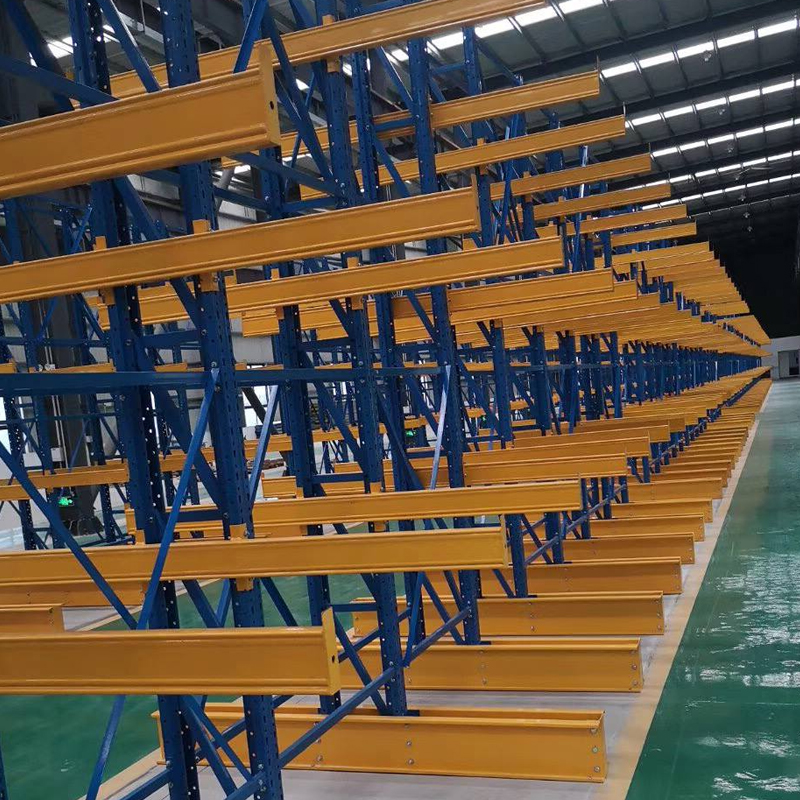

Heavy Duty Cantilever Racking Single Double Sided for Pipe Lumber Storage

Feature description:

The cantilevered shelving system is suitable for storing long materials, circular materials, sheet materials, pipes, and irregular goods. The upright columns of the cantilevered shelving are mostly made of H-shaped steel or cold-rolled steel, and the cantilevers are made of square tubes. The cantilever shelving uses cold-rolled steel or H-shaped steel for the uprights, and the cantilevers are connected to the uprights by either plug-in or bolted connection. The base is connected to the uprights by bolts. The base is made of cold-rolled steel or H-shaped steel. Goods are accessed by forklifts, cranes, or manual labor. The shelf height is usually within 2.5 meters (up to 6 meters if accessed by forklifts), the cantilever length is within 1.5 meters, and the load capacity per arm is usually within 100-500KG.

This type of shelving is mostly used in mechanical manufacturing industries and building material supermarkets. With shelves added, it is particularly suitable for small-space, low-height warehouses, with convenient management and wide visibility, and has a higher utilization rate compared to ordinary shelf-type shelving; it can be classified into lightweight, medium-weight, and heavy-weight types based on its load-bearing capacity.

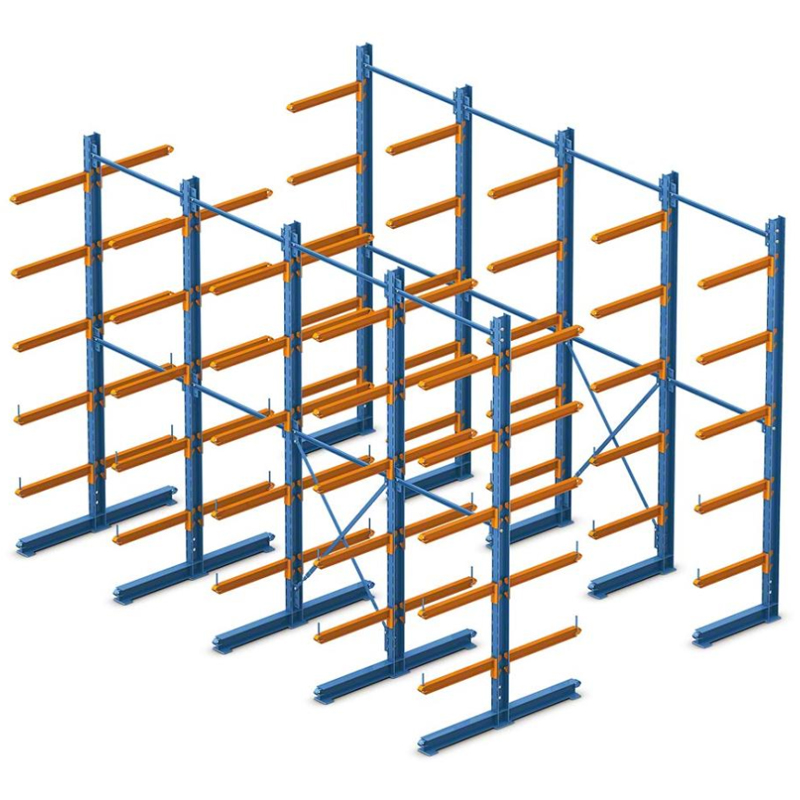

For storing heavy, scattered, or other special products, the cantilevered shelving system is an ideal solution. The cantilevered shelving has single-arm and double-arm versions, and is efficient for storing products like wood, pipes, and long items. The cantilevered shelving is formed by installing an external cantilever on the traditional shelving pillars, and it is a specialized shelving system for long-shaped items.

The major features of the cantilevered storage system:

1. It is only suitable for storing long or rolled-shaped goods.

2. It requires a handling equipment with a wider fork gap, such as a side-type forklift with a larger fork gap.

3. The shelf height is limited, generally below 6 meters.

4. The space utilization rate is low, approximately 35% - 50%. 5. Storage type: Long strips and long rolls.
